High quality schnell 3d panel producing machine

FOB Reference Price:Get Latest Price
$30,000.00 - $60,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
GWC-1600D
Lead Time:
Quantity(Sets) 1 - 2 >2
Est. Time(days) 50 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
After-sales Service Provided:
Online support, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas, No after-sales service
Place of Origin:
Hebei, China
Brand Name:
Jiaoyang
Applicable Industries:
Construction works
Wire diameter:
3-6mm
Loading port:
XinGang,China
Transformer:
6x125KVA
Welding speed:
80 times/minute
packing:
waterproof plastic paper and wooden case
width:
1.6m
finished mesh:
wire mesh roll and mesh sheet
automatic type:
semi automatic Concrete Wire Mesh Welding Machinery
aperture:
50-200mm
Supply Ability
Supply Ability:
600 Set/Sets per Year roadway fencing mesh machine
Packaging & Delivery
Packaging Details
The spare parts and control cabinet will be loaded in wooden box. The main machine is nude packing. It needs one 40' GP container.
Port
Xingang,China
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(days) 50 To be negotiated

Product Description

High quality schnell 3d panel producing machine

1).  line wire and the weft wire are pre-straight and pre-cut

2). The welding power comes from the spring.

3). The weft wire feeding from the multi hopper which capacity is 1.5t, more over ten times than the traditional hopper.

4). The new machine added the bear wire net and carries equipment that makes the working

more convenience.

5). 125KVA Transformer with water cooling system.



Wire diameter

3-6MM

Line wire  form

pre-cut wire

Weft wire distance

50-200mm

Weft wire form

 pre-cut wire

Line wire distance

 50-200mm

Rated voltage

380V

grid width (customized)

2.5m,2m,1.6m

customized

Rated power

125KVA X8

Welding speed

60-80 times/min

Overall dimension

6 X 2.6 X 2.45M

line wire  No.

48

Max. grid length

30m



Basic Parts

 welded wire mesh machine 14.jpgwelder.jpgwelded wire mesh machine 3(1).jpg

Finished products


Application:

The welded mesh can be used in the floor & wall reinforcing mesh in the building,

 reinforcing mesh in the tunnel, bridge and road.

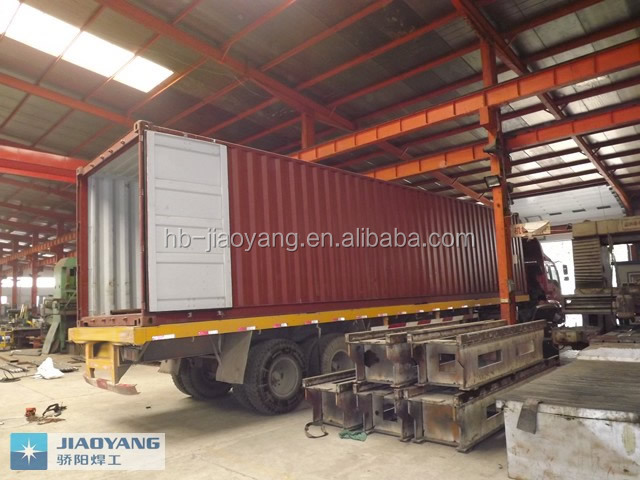

Packaging & Shipping

The spare parts and control cabinet will be loaded in wooden box.

The main machine is nude packing.it need one 40' GP container.

peijian 5.jpgpeijian 6.jpginstall 4.jpg


Our Services

guarantee 12 months since our machine is succesfully installed.

We will guarantee our machine quality and good working process


Company Information

Hebei jiaoyang wire mesh machine co.,ltd lacated in well known hometown of wire mesh anping county, established in 2000,covers of area of 2000000square meters with a total of RMB 45,000,000.00



FAQ

  1. this machine can weld mesh roll and mesh sheet

  2. you can choose pay terms with L/C or T/T
