Factory manufacture welded mesh machine for production masonry grid

FOB Reference Price:Get Latest Price
$40,000.00 - $60,000.00 / Set | 1 Set/Sets (Min. Order)
Wire Diameter:
3-5mm
Lead Time:
Quantity(Sets) 1 - 2 >2
Est. Time(days) 50 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
After-sales Service Provided:
Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Place of Origin:
Hebei, China
Brand Name:
JIAOYANG
Model Number:
GWC-2500B
Applicable Industries:
Construction works
name:
wire mesh welding machine
Wire diameter:
3-5mm
Loading port:
Xingang,China
Width of mesh sheet:
2.5m
Welding Speed:
80times
Transformer:
4x125KVA
Control system:
PLC
Certification:
ISO9001/CE
Weight:
2T
Supply Ability
Supply Ability:
20 Set/Sets per Month wire mesh machine
Packaging & Delivery
Packaging Details
The spare parts and control cabinet will be loaded in wooden box. The main machine is nude packing. it need one 40' GP container.
Port
Xingang,China
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(days) 50 To be negotiated

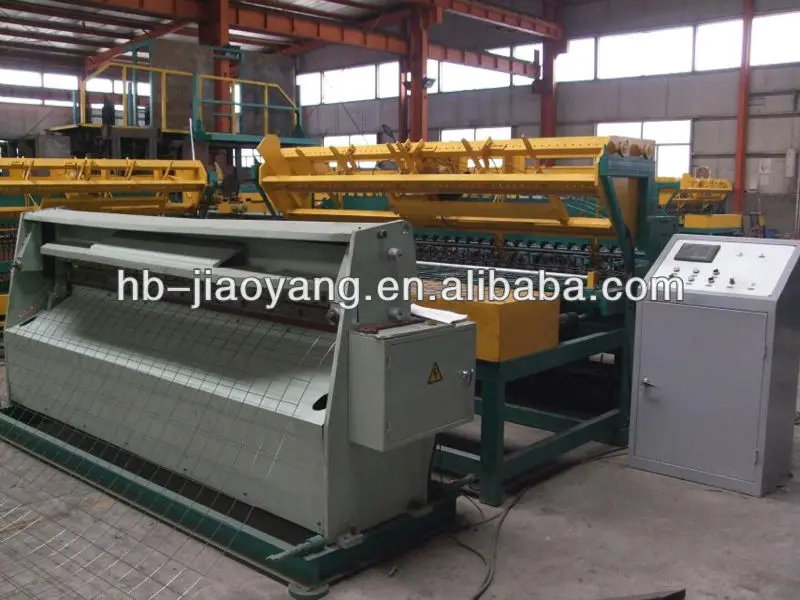

Wire mesh machine factory/ construction mesh welding machine




Product Description



Function Features:

1.The machine adopts synchronous control technique both welding time and cent-control welding is composed of digital and integrated electric circuit.

2.This operation is accurate, it has stable function, firm welded point and without welded tracks. Not only welding speed is fast but also it is easy to learn and operate.

3.The line wires are fed from rolls and through precise wire straightening and positioning devise.Step motor controls fallen wefts structure and drawing materials are automatic(this technology has won the national patent ZL200520024381.3) So it is even and accurate,the edges of mesh are regular,it is unnecessary to slice the side.

4. Drawing mesh adopts elastic tension link(that met the nation patent ZL200520024380.9) and fixing the mesh.It is easy to regulate mesh holes and mesh size is rather accurate, welding aperture could adjust randomly within certain range.

5.The speed of this machine is very fast. It is easy to learn and only needs two workers to operate.The finished mesh could be in rolls or in panels.



The main parameter:

wire diameter

3.0-5.0mm

rated voltage

380v

welding aperture

50*50-200*200mm

rated electrical power

125KVA*6

width of mesh

2500mm

overall dimension

2200*2600*1800mm

number of electrodes

48

machine weight

4.5T

welding speed

60times/min

Feeding of line wire

Continuous





Feeding of cross wires

Pre-straightened and cut

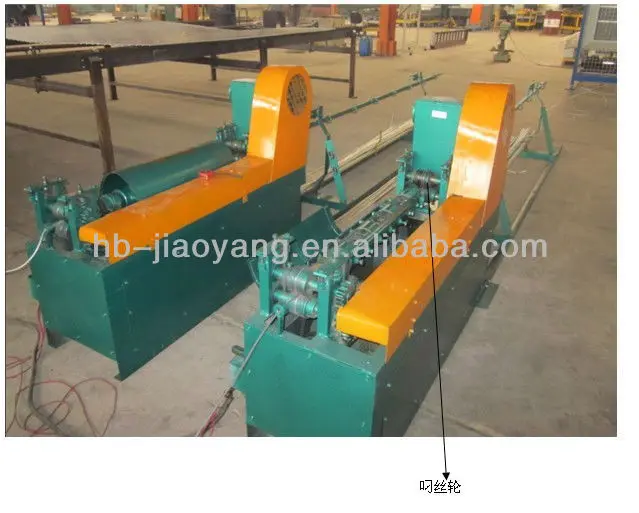

The accessories :  ( straightening and cutting wire machine)

Fence Mesh Sheet Welding Machine







Packaging & Shipping



  914940292_104

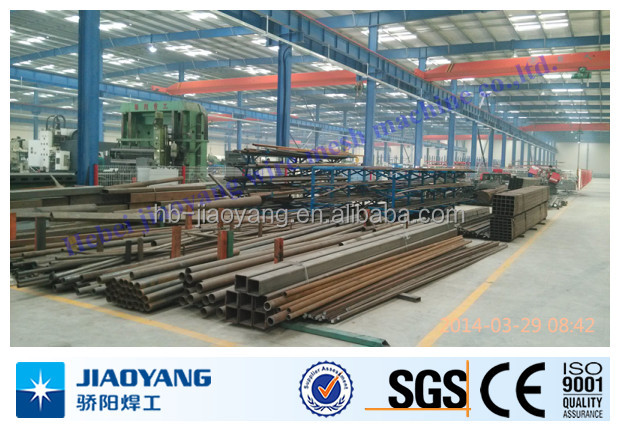

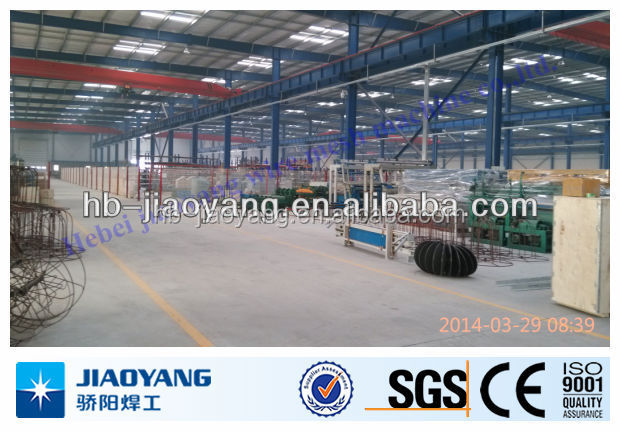

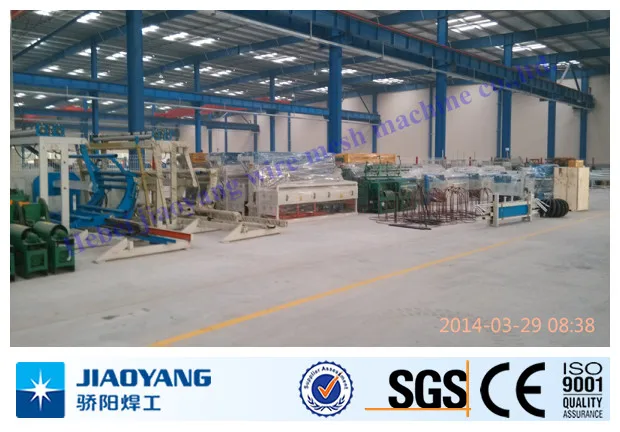

Company Information

  1218420680_2251218420678_8181244789107_6140401_7_JIAOYANG workshop (1)
