Full Automatic Reinforced Concrete Mesh Welding Machine

FOB Reference Price:Get Latest Price
$90,000.00 - $120,000.00 / Set | 1 Set/Sets (Min. Order)
Wire Diameter:
5-12mm
Lead Time:
Quantity(Sets) 1 - 2 >2
Est. Time(days) 50 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
After-sales Service Provided:
Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Place of Origin:
Hebei, China
Brand Name:
Jiaoyang
Condition:
New
Production Capacity:
90times/min
Power (kW):
215
Applicable Industries:
Construction works
Weight (KG):
6000
Wire diameter:
5-12mm
Control system:
PLC CONTROLLER
Weld speed:
40-60times/min
Cross wire form:
Auto-feeding
Cross Wire Space:
50mm-300mm adjustable
Line wire form:
Precut Wire
Line Wire Space:
50-300mm Adjustable
Certification:
CE ISO9001
Finished product:
concrete reinforced panel
Supply Ability
Supply Ability:
2 Set/Sets per Month Contains wire straightening and cutting machine
Packaging & Delivery
Packaging Details
packed with plastic and suitable sea transportaion.
Port
XINGANG,CHINA
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(days) 50 To be negotiated

Reinforce mesh welding machine, brc rebar mesh making machine

-1.fw

Buying Guides

Below  information is required for quick quotation:

1. Wire diameter :   From         mm to         mm.

2. Line wire space : From        mm to             mm.

    Cross wire space : From        mm to             mm.

3. Mesh width: 1200mm ~1500mm~2100mm~2500mm~3000mm ( customized)

4. Industrial voltage : 380V  50HZ ( Customized)

5.  Do you want to weld wire mesh panel or mesh in coil ?

6.  Is the auxiliary equipment also require ?

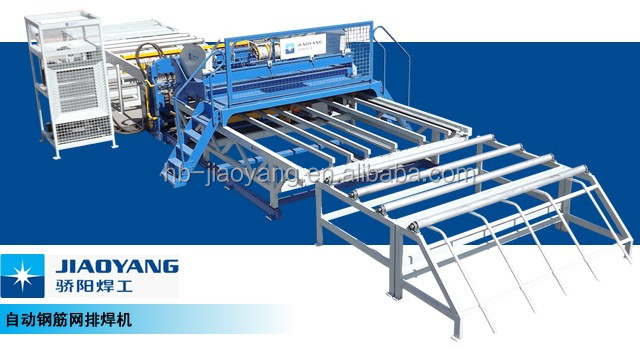

Product Description
  • This kind of reinforce mesh welding machine is our latest developed reinforcing mesh welding machine. The line wire and the weft wire are pre-straight and pre-cut. The line wire is feeding by the servo motor ,pulling the wire net by the servo motor auto.
  • The weft wire feeding from the multi hopper which capacity is more over ten times than the traditional hopper.
  • The new reinforce mesh welding machine added the bear wire net and carry equipment that makes the working more convenience .
  • The welding part is used the springiness input wire trunking  that makes the welding copper use for long time.
  • This machine adopts synchronous control technique. The cent-control and welding time are composed of PLC program system. The input front-panel is touch screen , the operate is more intelligent and reasonable.

Main technical parameters:

Wire diameter

5.0-12mm/3-8mm

Line wire  form

pre-cut wire

Weft wire distance

Mini 50mm

Weft wire form

 pre-cut wire

Line wire distance

100-300mm

Rated voltage

380V

Welding net width

2500mm

Rated power

125KVA X 12

Welding speed

25times/min

Overall dimension

24 X 6.0 X 2.65M

line wire  No.

24/48

Length wire net

6000mm



Products & Application:

The welded mesh can be used in the floor & wall reinforcing

 2500 JPG



After-service:

  1. Our technical will help you install the wire mesh  machine and training your workers.
  2. If there is any problem, you can ask us freely. We promise to do our best to help you.

fuwu

Our machines have approved CE Certificate for exporting to Europe Markets.





01. Hebei jiaoyang wire mesh machine co.,ltd--Certificates:



.webp

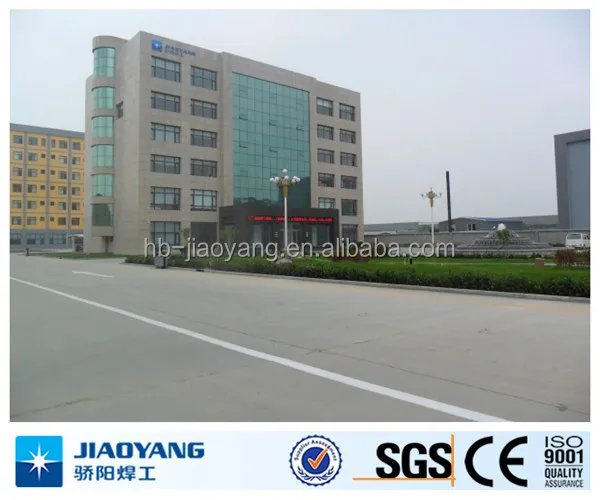

02. Hebei Jiaoyang wire mesh machine co.,ltd---Factory



0_

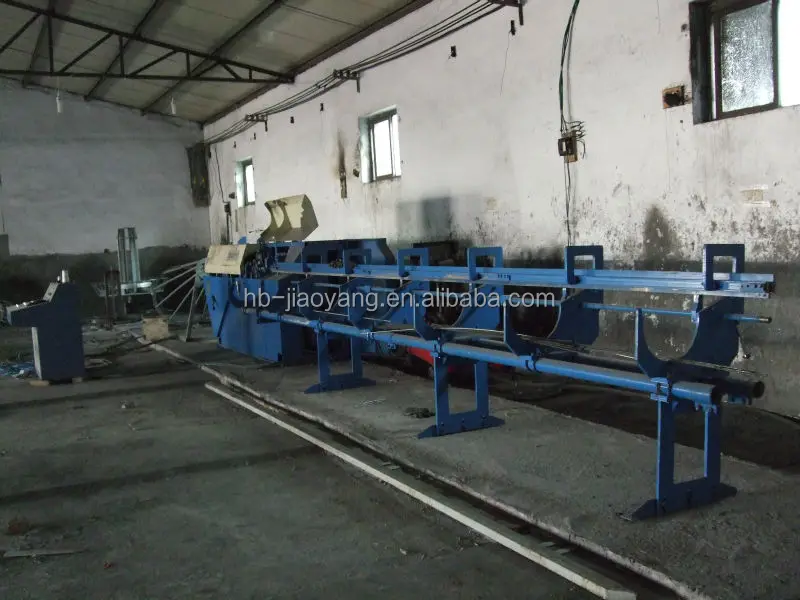

03. Hebei Jiaoyang Wire Mesh Machine Co.,ltd --- Wire Straightening and cutting machine

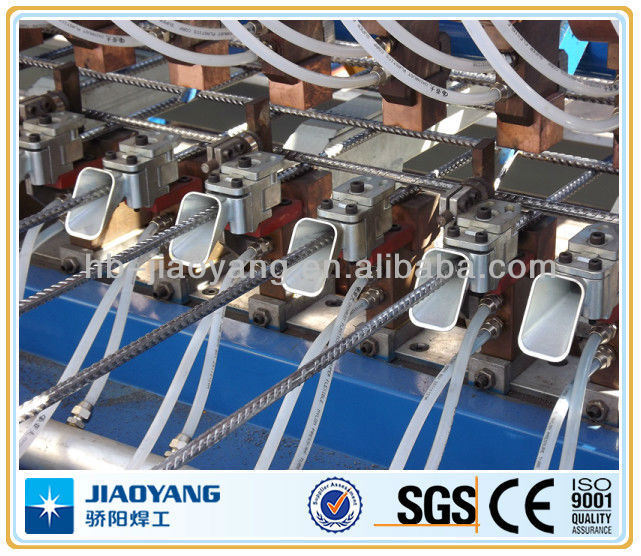

04. Hebei JIaoyang Wire Mesh Machine Co.,ltd---Wleding Pratreinforcing mesh welding machine 22





Finished Products
