automatic construction mesh panel welding machine

FOB Reference Price:Get Latest Price
$24,000.00 - $25,000.00 / Set | 1 Set/Sets (Min. Order)
Wire Diameter:
3-5mm 3-6mm 4-8mm
Lead Time:
Quantity(Sets) 1 - 2 >2
Est. Time(days) 50 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
After-sales Service Provided:
Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Place of Origin:
Hebei, China
Brand Name:
JIAOYANG
Model Number:
GWCD2200
Applicable Industries:
Construction works
Name:
automatic construction mesh panel welding machine
Type:
GWCD2200
wire dia:
3-5mm
width:
2200mm
mesh aperture:
50x50-200x200mm
electrode:
40
finished mesh:
in panel
line wire feeding:
pre-straightened and cut wire automatically
cross wire feeding:
step motor falling wire automatically
Weight:
2t
Supply Ability
Supply Ability:
10 Set/Sets per Month automatic construction mesh panel welding machine
Packaging & Delivery
Packaging Details
main automatic construction mesh panel welding machine is packed with plastic bag to the container. The spare parts and control cabinet are packed in wooden box to the container
Port
Xingang,China
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(days) 50 To be negotiated

automatic construction mesh panel welding machine







Product Description



GWCD2200 this type of automatic construction mesh panel welding machine is our latest design for our 2013 Anping Wire Mesh Fair.





Main feature of automatic construction mesh panel welding machine:



  • This production line just need 2-3 workers .
  •  It add falling wire auxiliary function from traditional fence mesh welding machine so that themax. welding speed can reach 120times/min.
  • line wire adopts intelligent feeing system which achieve put line wire automatically which breaking the industry status of putting wire manually in domestic .
  •  the mesh hole adopts latest synchronous belt drive structure. It makes the drawing mesh structure be more light and sentive. The speed of drawing mesh cart without mesh back increase 3 times.
  •  turning mesh structure is one of the most cutting-edge technology in mesh welding machine. It makes turn mesh stable,putting wire precise and tidy,save transport space and labor costs.
  • transoprting and falling mesh can pile the finished mesh panles and transport them to  non-operating area. It will be more faster and save labor to load the finished mesh panel to car and warehouse.



Main parameter of automatic construction mesh panel welding machine:



wire diameter3-5mmmesh aperture50-200mm
width2200mmelectrode40
voltage380V 50HZ customizedtransformer7x125KVA water cooling type
speed0-120times/mindimension22x5x2.36m

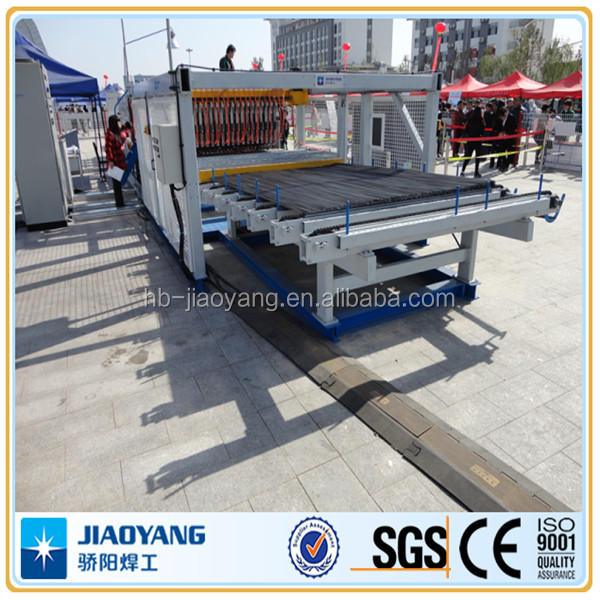

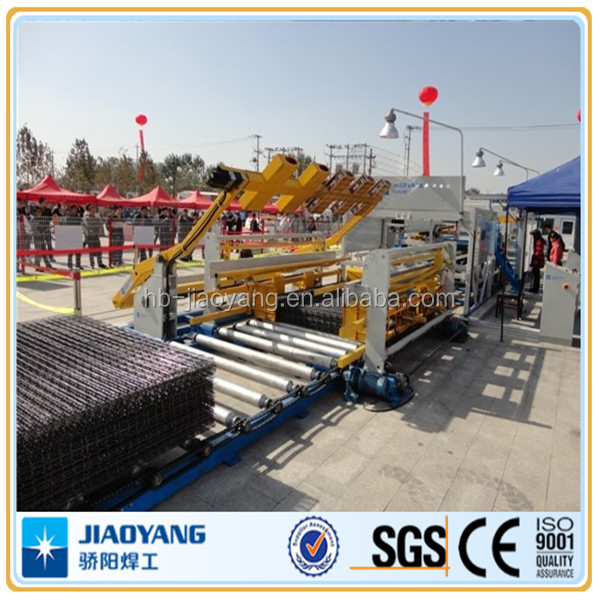

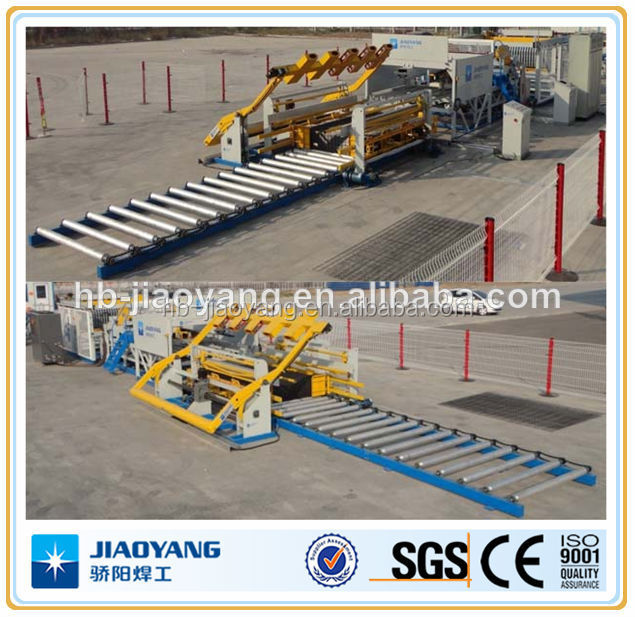

wire mesh welding machine automatic.jpgautomatic fence mesh welding machine production line (3).jpgAutomatic BRC mesh welding machine (3).jpgautomatic fence mesh welding machine production line (2).jpg
