full-automatic wire mesh welding production line ,cheap wire mesh welding production line

FOB Reference Price:Get Latest Price
US $25,000-45,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
JIAOYANG
Model Number:
GWC-1600G
color:
gray and blue or green
place of origin:
Hebei,China
certificate:
CE&ISO9001
wire diameter:
4-8mm
line wire distance:
50-200mm
cross wire distance:
50-200mm
wire mesh width:
1600mm
welding speed:
80times/min
electrode number:
32
machine:
multi-spot welder ,full-automatic wire mesh welding production
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
The spare parts and control cabinet will be loaded in wooden box. The main machine is nude packing. It needs one 40' GP container
Port
XINGANG,CHINA
Lead Time :
45-90DAYS
                                                      automatic wire mesh welding line full automatic fencing machine
Product Description





Machine performances &paramet6er



This machine adopts synchronous control technique, both the welding times and seperate welding are controlled by digital PLC system with touch screen, so that the operation is much more intelligent, reasonable and has a compression, sub-welding characteristics. The aircraft welding power is from servo motor, welding speed is much faster and more stable. welding pressure is provided by Nitrogen gas spring, which is easy to adjust quickly, and the pressurw is more evenly.

Line wire and cross wire are from coils, CNC sets mesh length, automatic cutting, dropping , arresting and output, which maximized saves labor and greatly increased production.



machine application:mine timbering wire mesh, construction mesh, reinforced mesh.





The main parameter



wire diameter4-8mmline wire formcoil
line wire distance50-200mmcross wire formcoil
cross wire distance50-200mmrated voltage380v
wire mesh width1600mmrated capacity125KVA*8
welding speed80times/mindimension3100*40000*3000MM
electrode number32wire mesh length6000mm




Packaging & Shipping



The spare parts and control cabinet will be loaded in wooden box. The main machine is nude packing. It needs one 40' GP container





Jiaoyang Service

Jiaoyang Services for  Best price automatic welded wire mesh machine (BV certificated)

Pre-sale Services of  Best price automatic welded wire mesh machine (BV certificated)

1.Product Technical Advisory
2.New Features
3.Product Preliminary Design and Feasibility Discussion
4.Product and System Selection and Configurations

 In-sales Services of  Best price automatic welded wire mesh machine (BV certificated)

1. Product Installation Instructions
2. Product Onsite Commissioning
3. Complete drawings and related technical information
4.Technical training

After-sales Service of  Best price automatic welded wire mesh machine (BV certificated)

1. Technical services during warranty periods

2.Free repair or replacement for products with quality problems during warranty period

3. Maintenance services and spare parts

4. Lifelong service and technical support for products sold

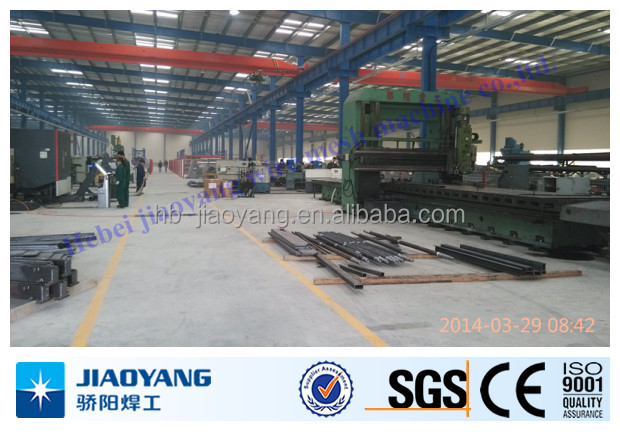

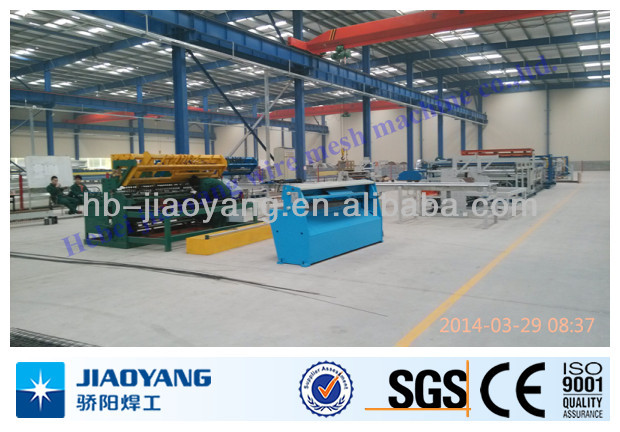

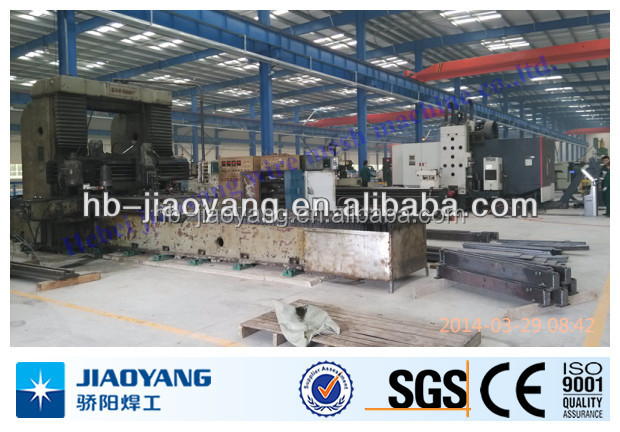

Company Information



Hebei Jiaoyang Wire Mesh Machine Co.,Ltd.( here-in-after referred to as JIAOYANG),located in the well-known hometown of wire mesh-Anping County,Hebei Province, established in the year 2000,is the professional manufacturer and exporter of various wire mesh welding machineries. It covers a total area of 200.000 square meters with a total capital of RMB40,000.000 and more than 200 employees, of whom, over 70 are engineers and technicians. It is equipped with over 100 sets of processing machineries. The reinforcing wire mesh welding machineries designed by Jiaoyang have obtained five national patents, which technical level has been at the frontier in resistance welding industry and field





Accessories

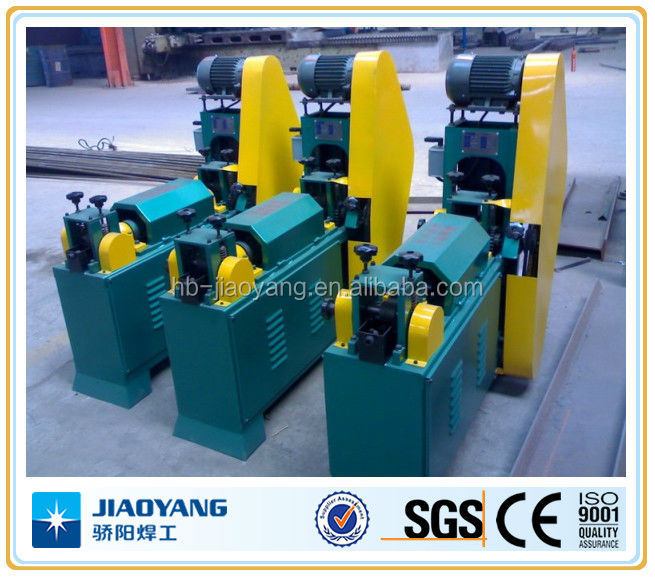

                                                 Ordinary straight wire machine



ModelTZ1-2.5
Wire Diameter(mm)1-2.5
Wire Length(mm)1000
Straightening Shaft Speed(r/m)1964.5
Straightening Speed(m/min)20
Motor Power0.55KW*2
Weight(kg)136
Dimension L*W*H(mm)1040*410*890

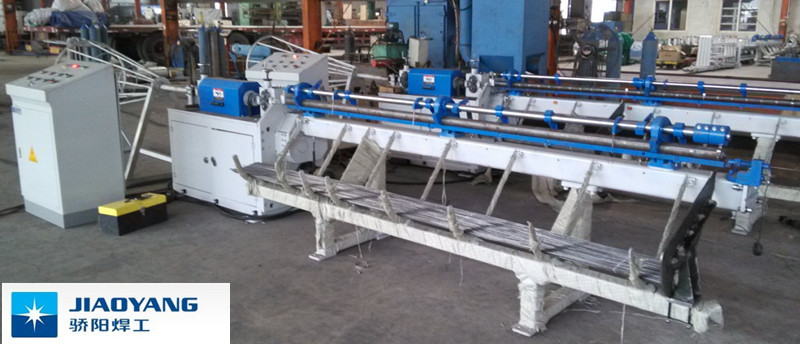

                                             High-speed straight wire



Wire diameter

3.0 ~ 6.0mm



Cutting Length

0.5~12m

Length precision

≤±1mm



Straightening precision

2mm



Straightening motor

4KW

Cutting motor

 1.1KW

Power

380V 50hz

Speed

110m/min







Certifications





Buying Guides
  • Below  information is required for quick quotation:

 1. Wire diameter :   From         mm to         mm.

2. Line wire space : From        mm to             mm.

    Cross wire space : From        mm to             mm.

3. Mesh width: 1200mm,1500mm, 2100mm, 2500mm, 3000mm ( customized)

4. Industrial voltage : 380V  50HZ ( Customized)

5.  Do you want to weld wire mesh panel or mesh in coil ?

6.  Is the auxiliary equipment also require ?
