anping automatic pressing machine 10x10 reinforcing welded wire mesh strength hand tool bar

FOB Reference Price:Get Latest Price
$95,000.00 - $98,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
GWCD-2500E
Lead Time:
Quantity(Sets) 1 - 2 >2
Est. Time(days) 60 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
After-sales Service Provided:
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Place of Origin:
Hebei, China
Brand Name:
JIAOYANG
Applicable Industries:
Construction works
Wire diameter:
3.0-8.0mm
Welding aperture:
50*50-200*200mm/100*100-300*300mm
Width of mesh:
2500mm
Number of electrodes:
48/24
Rated voltage:
380v 50hz
Welding speed:
80times/min /50times/min
Overall dimension:
50*5*2.3m /16*5*2.3m
Origin:
china
Certification:
CE&ISO9001
Supply Ability
Supply Ability:
500 Set/Sets per Year anping automatic pressing machine 10x10 reinforcing welded wire
Packaging & Delivery
Packaging Details
anping automatic pressing machine 10x10 reinforcing welded wire mesh strength hand tool bar
1.The main machine itself adopts nude packing
2.control cabinet and spare parts will be loaded into wooden box
Port
Xingang
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(days) 60 To be negotiated

anping automatic pressing machine 10x10 reinforcing welded wire mesh strength hand tool bar

Product Description

 anping automatic pressing machine 10x10 reinforcing welded wire mesh strength hand tool bar



1.This kind machine is our latest developed reinforcing mesh welding machine.The line wire and the weft wire are pre-straight and pre-cut.The line wire is feeding by the servo motor,pulling the wire net by the servo motor auto.



2.The welding power comes from the spring.It's easy to control the welding pressure.The weft wire feeding from the multi hopper which capacity is more over ten times than the traditional hopper.



3.The new machine added the bear wire net and carry equipment that makes the working more convenience.The welding adopts synchronous control technique. The cent-control and welding time are composed of PLC program system.The iput front-panel is touch screen,the operate is more intelligent and reasonable.

 anping automatic pressing machine 10x10 reinforcing welded wire mesh strength hand tool bar





Wire diameter5.0-12mmLine wire formpre-cut wire
Weft wire distanceMini 50mmWeft wire formpre-cut wire
Line wire distance100-300mmRated voltage380v/50HZ
Welding net width2500mmRated power125KVA*12
Welding speed50 times/minOverall dimension24*6.0*2.65M
line wire No24Length wire net6000mm

Main technical parameters

Wire diameter3-8mmLine wire formpre-cut wire
Weft wire distanceMini 50mmWeft wire formpre-cut wire
Line wire distance50-200mmRated voltage380v/50HZ
Welding net width2500mmRated power125KVA*6
Welding speed60-80 times/minOverall dimension24*6.0*2.65M
line wire no48Length wire net6000mm



Packaging & Shipping

anping automatic pressing machine 10x10 reinforcing welded wire mesh strength hand tool bar

1.The machine packing with plastic.

2.The spare parts packing in the wooden case.

914940292_104

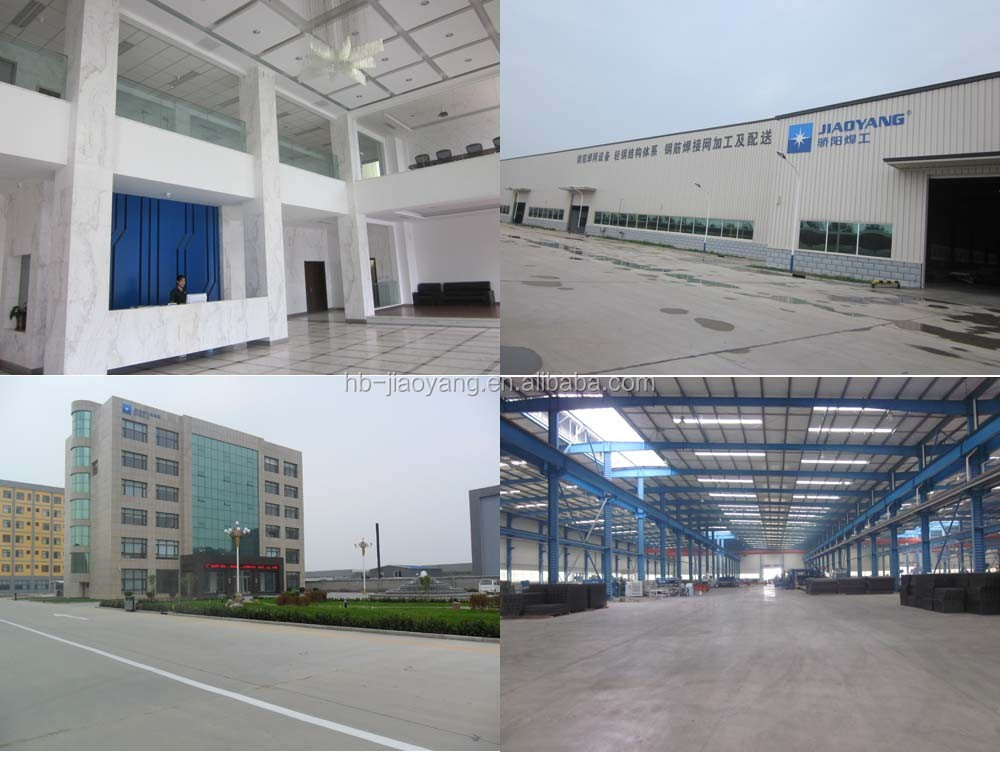

Company Information

 anping automatic pressing machine 10x10 reinforcing welded wire mesh strength hand tool bar





anping automatic pressing machine 10x10 reinforcing welded wire mesh strength hand tool bar

.webp
FAQ

Q---What your machine can weld wire?

A---black wires,iron wires,galvanized wires



Q---How to adjust the welding mesh size?

A---- Adjust the size of the electrodes, adjusted mesh pull car, adjust the speed of the cross wire hopper.



Q---how to adjust the speed of the wire mesh welding machine?

A---Through the contrl cabinet



Q---How to confirm the quality before you place the order?

A--We warmly welcome your friends and you come to our factory to visit. We have the ISO 9001 Certificate and the SGS Certificate.



Q---How do you guarantee your machine's quality when producing?

A---Our services are always by your side, We have our technicians to inspect the parts of the machine every day, the machine will be adjusted well in our factoty before shippment ,all the parts are in good condition.

Q---What is your Min Order?

A---One set is okay.

Q---What is your delivery time?
A---Within 55-60 working days after receive your deposit.

Q---What is your payment terms?
A---L/C and T/T

30% of total amount will be paid by T/T after signing the contract.

70% of total amount will be paid before the loading machine.



Q---What is your price terms?

A---FOB Xingang Port China     CIF/CFR+ (YOUR PORT)


Any furter and detail information please feel free to contact me.
Waitting for you contacting me!
