Galvanized 2x2 galvanized welded wire mesh panel machine with CE certificate

FOB Reference Price:Get Latest Price
US $1,000-40,000 / Sets | 2 Set/Sets galvanized welded wire mesh panel machine with CE certificate (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
JIAOYANG
Model Number:
GWCD1200B
Product Name:
galvanized welded wire mesh panel machine with CE certificate
Color:
grey and blue
Control:
PLC and touching screen
Welding principal:
resistant welding
Operating language:
both Chinese and English
Usage:
weld mesh in roll or mesh panel
Weight:
4200kg
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 year
Rated Duty Cycle:
25%
Rated Capacity:
6*125KVA
Condition:
New
Dimensions:
3.2*3.2*1.8m
Voltage:
380V 50HZ ( customized)
Certification:
CE Certificate and ISO9001:2008
Max. Welding Thickness:
3-5mm
Supply Ability
Supply Ability:
20 Set/Sets per Month galvanized welded wire mesh panel machine with CE certificate
Packaging & Delivery
Packaging Details
Galvanized 2x2 galvanized welded wire mesh panel machine with CE certificate
1. Main machine is packed by plastic
2. Spare parts is loaded by wooden box.
Port
TIANJING,CHINA
Lead Time :
Shipped in 45 days after payment

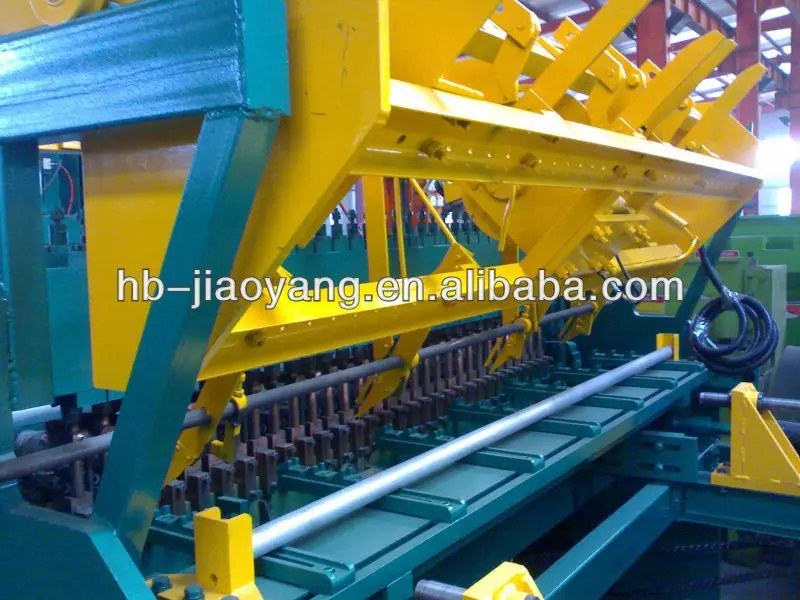

 Galvanized 2x2 galvanized welded wire mesh panel machine with CE certificate

Model: GWCD1200B-2500B



Buying Guides

Below  information is required for quick quotation:

1. Wire diameter :   From         mm to         mm.

2. Line wire space : From        mm to             mm.

    Cross wire space : From        mm to             mm.

3. Mesh width: 1200mm ~1500mm~2100mm~2500mm~3000mm ( customized)

4. Industrial voltage : 380V  50HZ ( Customized)

5.  Do you want to weld wire mesh panel or mesh in coil ?

6.  Is the auxiliary equipment also require ?



Product Description



Wire diameter

3-5mm

Line wire

48 rolls

Weft wire distance

50-300mm

Weft wire

Pre-cut wire

Line wire distance

50-300mm

Rated voltage

380V  50HZ

Welding net width

2500mm

Rated power

125KVA×6

Welding speed

40-45times/min

Overall dimension






















  Note:

     1. When the line wire distance is 50-200mm, the weft wire distance is 50-200mm

      2. Mesh Min. hole can be 50x25mm. when there is not need to crimp.

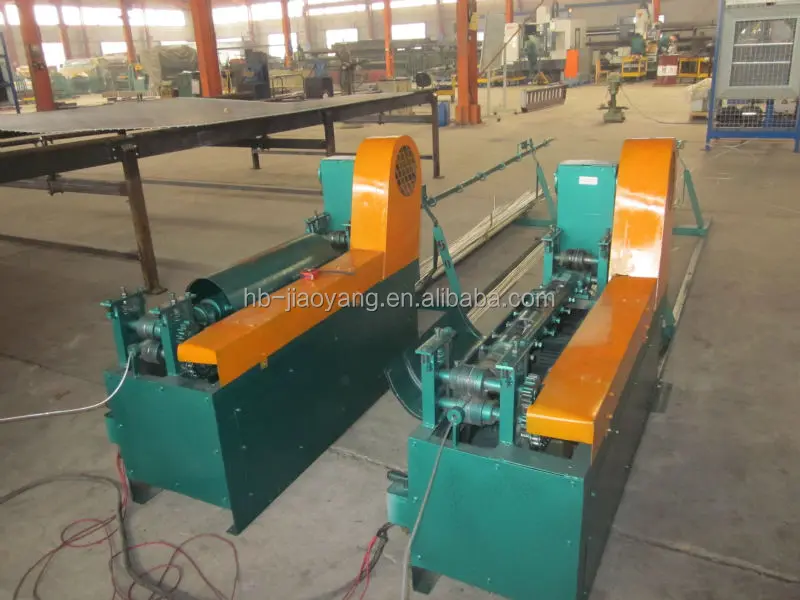

Accessories-wire cut

Type 1:  Wire straightening and cutting machine

  • wire diameter: 3-6mm
  • Cutting length : 0.8-6m
  • Speed: about 30m/min.

Type 2:  High speed wire straightening and cutting machine

  • wire diameter: 3-6mm
  • Cutting length : 0.8-6m
  • Speed: about 100m/min.

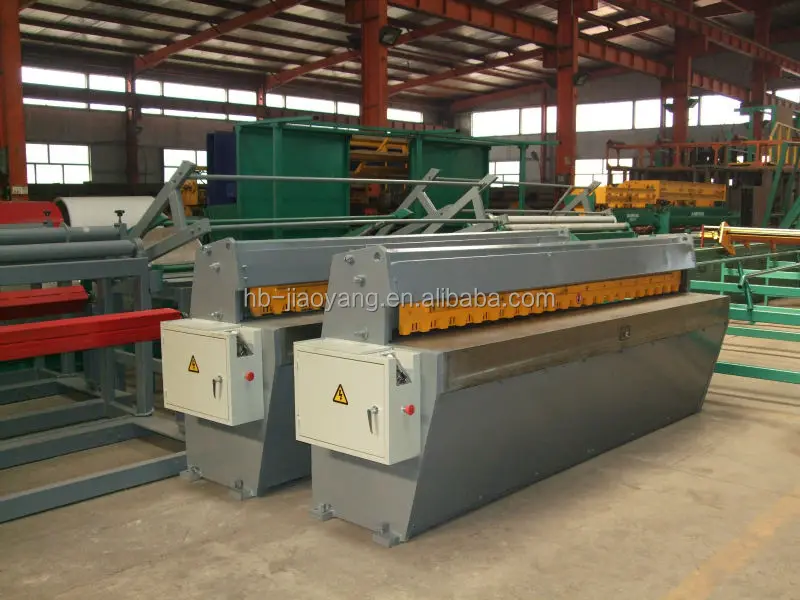

Accessories-cutter

Wire Mesh Cutting Machine



Specification :

  • Wire diameter:  3-6mm / 3-8mm
  • Cutting width :  1200mm ~ 1500mm~2100mm~2500mm~3000mm

Picture:

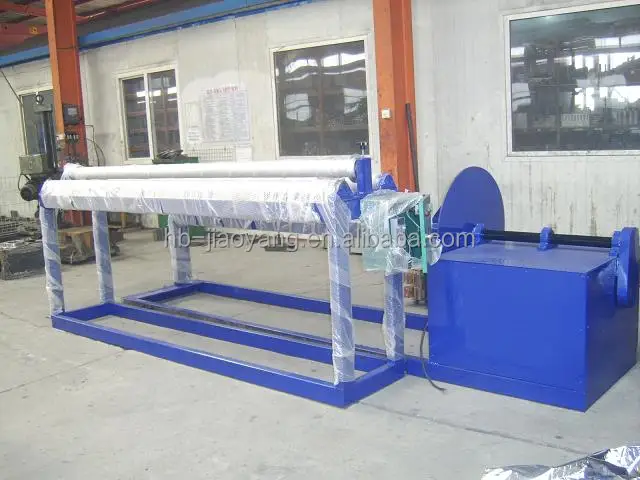

Accessories-roller

Mesh Roller /coil machine ( standard )

Mesh Roller /coil machine ( Automatic pull mesh )

 Packaging & Shipping

1. The main mesh welding machine is packed by plastic

2. the spare parts is loaded by wooden box.



Our service
Export manager

Sophia Shi

Skype: sophia21316   Email:jiaoyang1@ weldingmachine.cn

Wechat

008618231081303



1. Enginers is aviliable to install the machine oversea.

2. Translator is aviliable to work oversea also.
