Multi Point reinforcing concrete mesh welding machine production line

  • >=1 Sets
    $90,000.00
Wire Diameter:
3-8mm 5-12mm
Lead Time:
Quantity(Sets) 1 - 2 >2
Est. Time(days) 60 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
After-sales Service Provided:
Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Place of Origin:
Hebei, China
Brand Name:
Jiaoyang wire mesh welding machine
Condition:
New
Production Capacity:
80-100times/min
Power (kW):
215
Applicable Industries:
Construction works
Weight (KG):
7500
wire diameter:
3-8mm/5-12mm
welding aperture:
50-300mm
width of mesh simple:
1200/ 1600/2500/3000mm
brand name:
JIAOYANG
TYPE:
3~12mm Reinforcing Mesh Welding Machine
place of origin:
Hebei, China
Processing material:
Round Wires, ribbed wires, black wires,galvanized wires
Finished product:

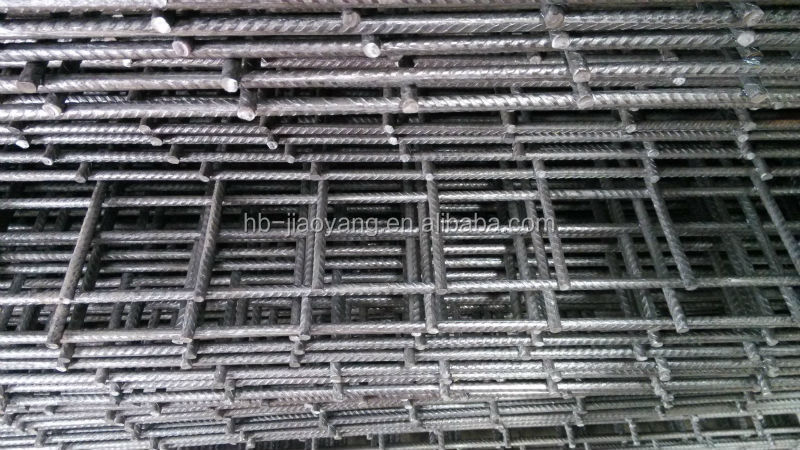

Wire Mesh Sheets
Weld speed:
80-100times/min
Supply Ability
Supply Ability:
200 Set/Sets per Year
Packaging & Delivery

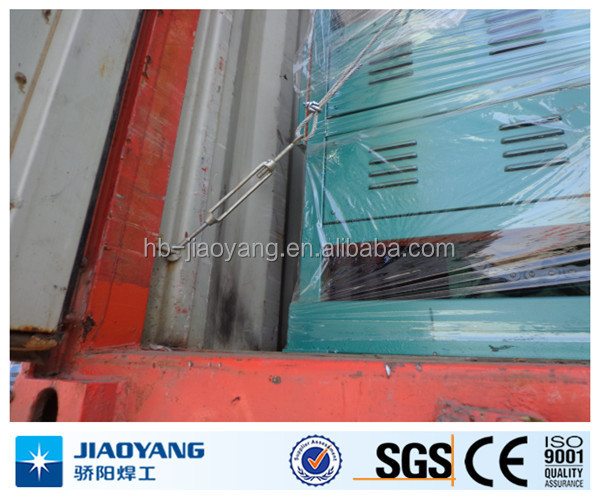

Packaging Details
3~12mm Reinforcing welded wire Mesh Welding Machine
the main machine is by plastic.
the spare parts are packed by wooden box.
Port
Tianjin,China
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(days) 60 To be negotiated



Multi Point reinforcing concrete mesh welding machine production line

Product Description

 Multi Point reinforcing concrete mesh welding machine production line



Brief introduction of 3~12mm Reinforcing Mesh Welding Machine

The reinforcing mesh welding machine welds the line wires and cross wires of the steel to be solid mesh in the principle of multi electrode resistance welding.

It consists of welded equipment, line and cross wires feeding device, mesh stepping system, mesh laying and convey device, electrical control system and

cooling system. The material can be rolled ribbed steel wire, cold or hot rolled round steel wire.

Character of the machine

1. Main machine frame is welded with the thicker steel panel and steel bar. The main structure is well-set and compact.
2.The cross wire feeding is automatic and driven by step motor, which makes the cross wire falling and mesh aperture size more accurate. Cross wire

monitoring system can be installed to stop the machine in case cross wire is used up or get stuck.

3.The mesh pulling system is controlled by step motor, which makes the pulling mesh aperture more standard and accurate.
4. The mesh aperture size can be adjusted. The line wire spacing can be adjusted through adjusting the electrode spacing. The cross wire spacing can be

adjusted by PLC control panel. And even on the same piece of wire mesh different size of mesh aperture can be made through PLC control panel.
5. Welding adopts late-model efficient welding transformer. The voltage adjusting range is big which enlarge the range of wire diameter size. It is adjusted through the electricity current button on the front panel.
6. In order to adapt the capacity of the clients', welding transformers don't work at the same time but separately and one by one when welding the same row of cross wire.

7. The transformer, upper and lower electrode s are equipped with water cooling system in case short-circuit and to prolong their life-span.
8. This machine adopts synchronous control technology. The welding time and separating welding is controlled by numeric integrated circuit, which is with high control precision and stable function.

9. Welding Speed: 60~100 times/minute, the work speed mainly depends on material of the raw material, steel bar diameter, space of the mesh, choice of welding parameter, proficiency of workers, etc.



Main parameter of Multi Point reinforcing concrete mesh welding machine production line

wire diameter3-12mmrated voltage380v
welding aperture100*100-300*300mmreted electrical power1500kva
width of mesh2500/3300mmwelding speed50time/min
number of electrodes24overall dimension20*5*2.3m



Note: The abovIing is only the commonly used size and we can customize according to your specific requirement.



 Multi Point reinforcing concrete mesh welding machine production line









After-sales service

1 Our technician will help you install the wire mesh machine and training your workers. Main machine warranty is one year.

2 If have problem contact us at any time . We promise to do our best to help you.

Note: we can also customize the machines based on our clients special requirements.





Multi Point reinforcing concrete mesh welding machine production line

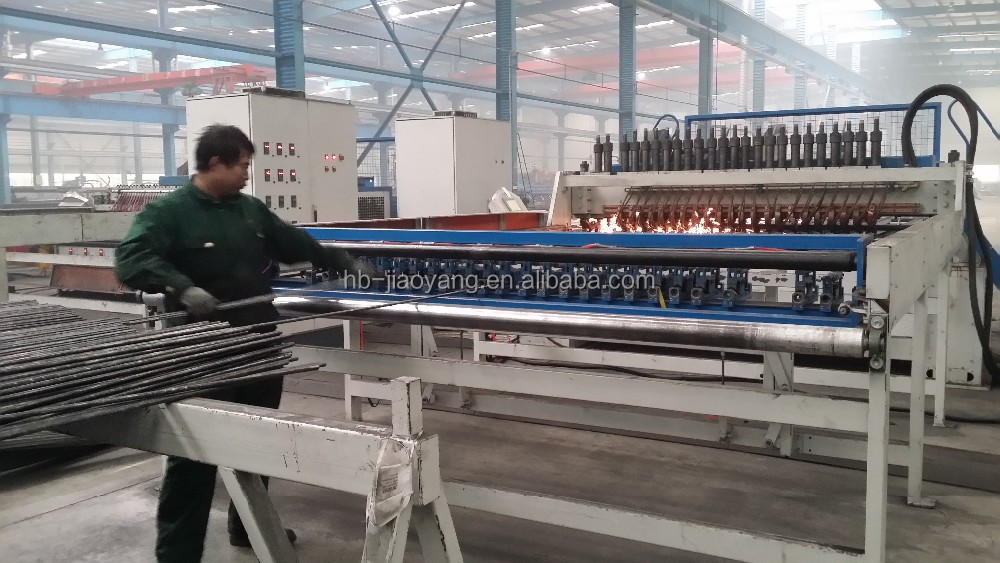

our workers operate Multi Point reinforcing concrete mesh welding machine production line



 Multi Point reinforcing concrete mesh welding machine production line

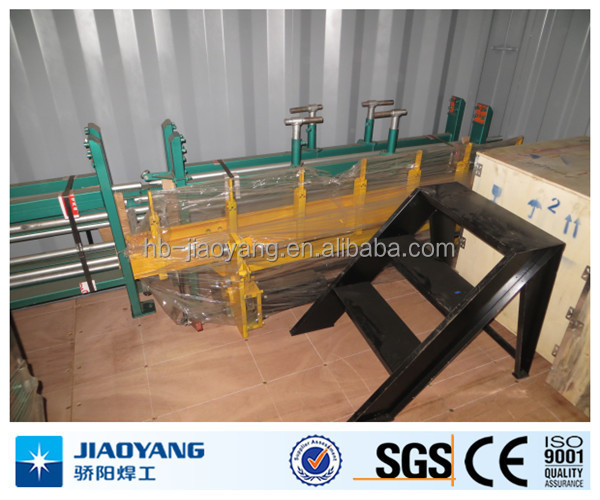

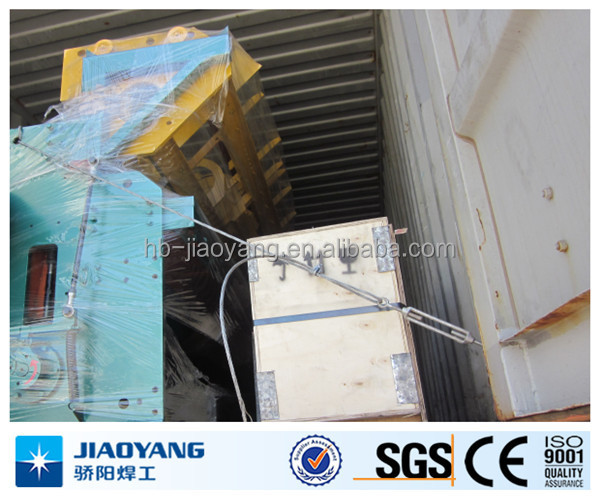

Packaging & Shipping





 Multi Point reinforcing concrete mesh welding machine production lineMulti Point reinforcing concrete mesh welding machine production lineMulti Point reinforcing concrete mesh welding machine production line

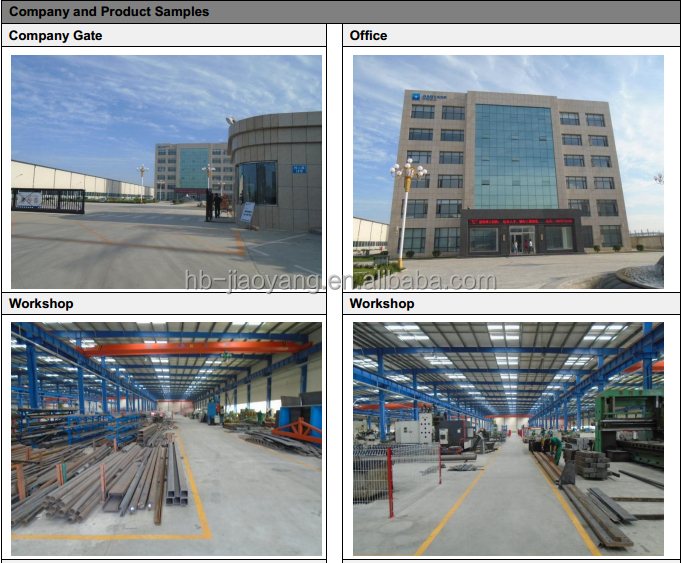

Company Information





 Multi Point reinforcing concrete mesh welding machine production lineMulti Point reinforcing concrete mesh welding machine production lineMulti Point reinforcing concrete mesh welding machine production line









Any question about wire mesh welding machine, reinforcing mesh welding machine , welded steel bar mesh machine , wire mesh fence panel manufacture machine , reinforcing mesh machine contact with us please,sincere service for you and welcome to Hebei jiaoyang.
