Automatic Wire Mesh Welding Panel Fence Machine/ Welded Panel Steel Wire Mesh Welders

FOB Reference Price:Get Latest Price
$10,000.00 - $30,000.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Type:
Welding Wire Machine
Condition:
New
Place of Origin:
Hebei, China
Brand Name:
JIAOYANG
Model Number:
GWCD-2500S
Usage:
Multi spot wire mesh welding machine for construction
Voltage:
380V/220V/415V/440V
Certification:
CE
Dimensions:
2500*2100*1600mm
Rated Duty Cycle:
10%
Rated Capacity:
50kva/60kva/100kva/150kva
Current:
200A
wire diameter:
0.6-12mm
mesh width:
1200mm,1500mm,2000mm, 2500mm
welding speed:
45-120 times/min
line wire feeding:
wire coils or pre-cut
cross wire feeding:
wire coils or pre-cut
Processing material:
Galvanized Wire/SS/black wire
Color:
Blue&yellow
Control system:
Japan Panasonic Intelligent
Name:
Multi spot wire mesh welding machine
Weld speed:
60-90times/min
After-sales Service Provided:
Engineers available to service machinery overseas
Weight:
4.5T
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
with plastic film and wooden case
Port
TIAN JIN
Lead Time :
1-30 days after receiving advanced payment
Automatic Wire Mesh Welding Panel Fence Machine/ Welded Panel Steel Wire Mesh Welders

Hi. We are a manufacturer of wire mesh machines with 20 years experience.



Automatic Wire Mesh Welding Panel Fence Machine/ Welded Panel Steel Wire Mesh Welders

Mesh welding machine series:

Reinforcing mesh welding machine, fence mesh welding machine, animal cage welding machine, steel grating welding machine, roll mesh welding machine, wedged wire screen welding machine, wire straightening and cutting machine etc.

Mesh weaving machine series:

Chain link fence machine, barbed wire machine, nail making machine, wire drawing machine, expanded metal mesh machine, expanded metal machine, gabion mesh machine, hexagonal wire mesh machine, crimped mesh machine etc.



Automatic Wire Mesh Welding Panel Fence Machine/ Welded Panel Steel Wire Mesh WeldersMulti spot wire mesh welding machine

Automatic Wire Mesh Welding Panel Fence Machine/ Welded Panel Steel Wire Mesh Welders

  • Wire diameter: 0.6-1.2mm, 1.2-2.2mm...
  • Pitch: 1/2"; 1", 2", 3", 4"......
  • Mehs width: 1.2-2.5m
  • Wire feed way: automatic from wire coils
  • Material: GI wire, black wire, SS wire
  • Welding speed: max.120 times/min
  • Mesh type: roll mesh

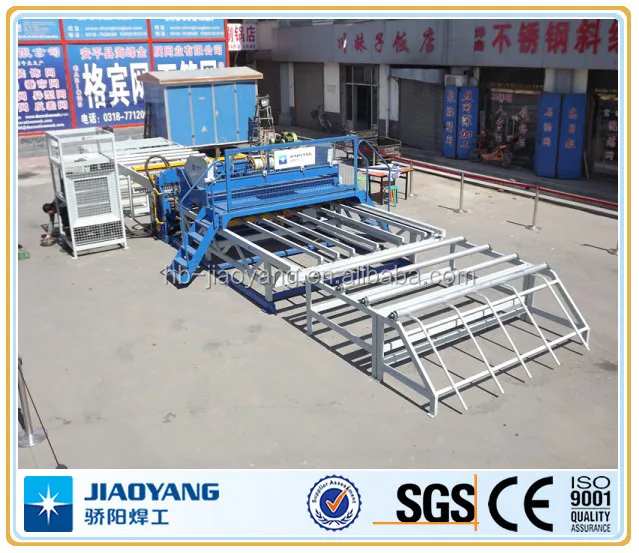

Automatic Wire Mesh Welding Panel Fence Machine/ Welded Panel Steel Wire Mesh WeldersMulti spot wire mesh welding machine

Automatic Wire Mesh Welding Panel Fence Machine/ Welded Panel Steel Wire Mesh Welders

  • Wire diameter: 2-3.5mm
  • Longitude wire space: 50-200mm
  • Cross wire space: 25-200mm
  • Mesh width: max.1500m
  • Welding seed: 60-110 times/min
  • Control system:  Panasonnic PLC
  • Mesh pulling: Panasonic servo motor

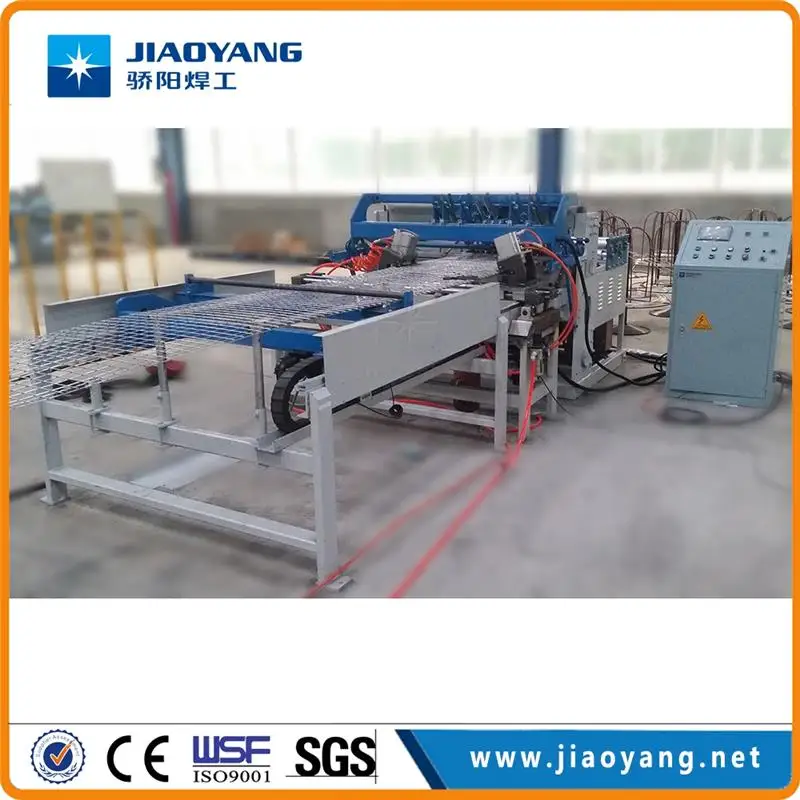

Automatic Wire Mesh Welding Panel Fence Machine/ Welded Panel Steel Wire Mesh WeldersMulti spot wire mesh welding machine

Automatic Wire Mesh Welding Panel Fence Machine/ Welded Panel Steel Wire Mesh Welders

  • Wire diameter: 2.5-6mm
  • Mesh hole size: 50*25-300*300mm
  • Mesh width: 1.2-2.5m
  • Mesh length: max.6m
  • Control system: Panasonic PLC
  • Mesh pulling: Panasonic servo motor
  • Wire feed way: pre-cut

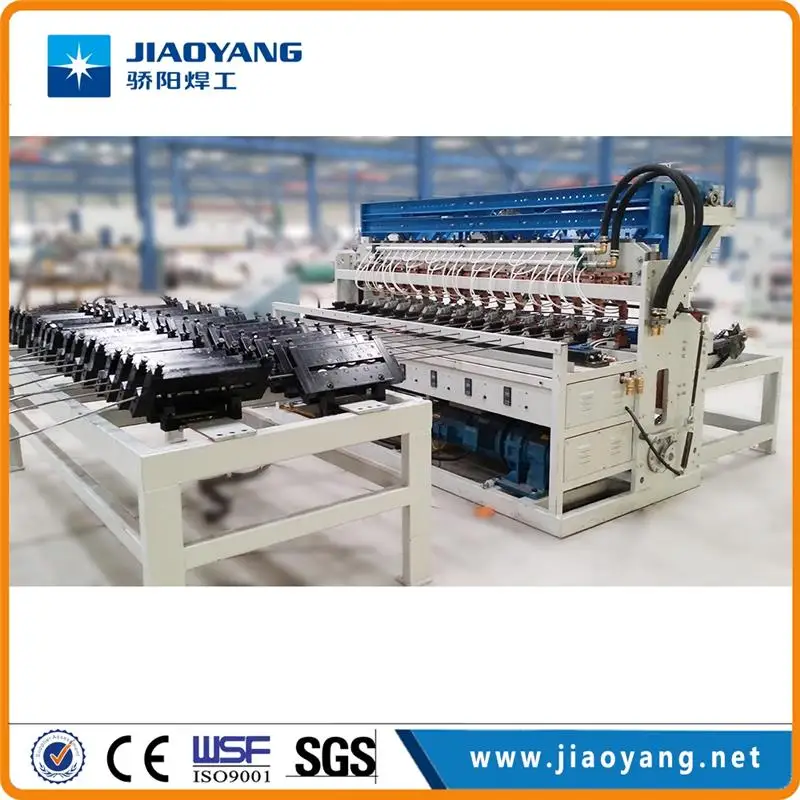

Multi spot wire mesh welding machine

Automatic Wire Mesh Welding Panel Fence Machine/ Welded Panel Steel Wire Mesh Welders

  • Wire diameter: 2.5-6mm
  • Mesh hole size: 50-300mm
  • Mesh width: max.2.5m
  • Mesh length: max.50m
  • Longitude wire feed: from wire coils
  • Cross wire feed: pre-cut
  • Mesh type: panel or roll

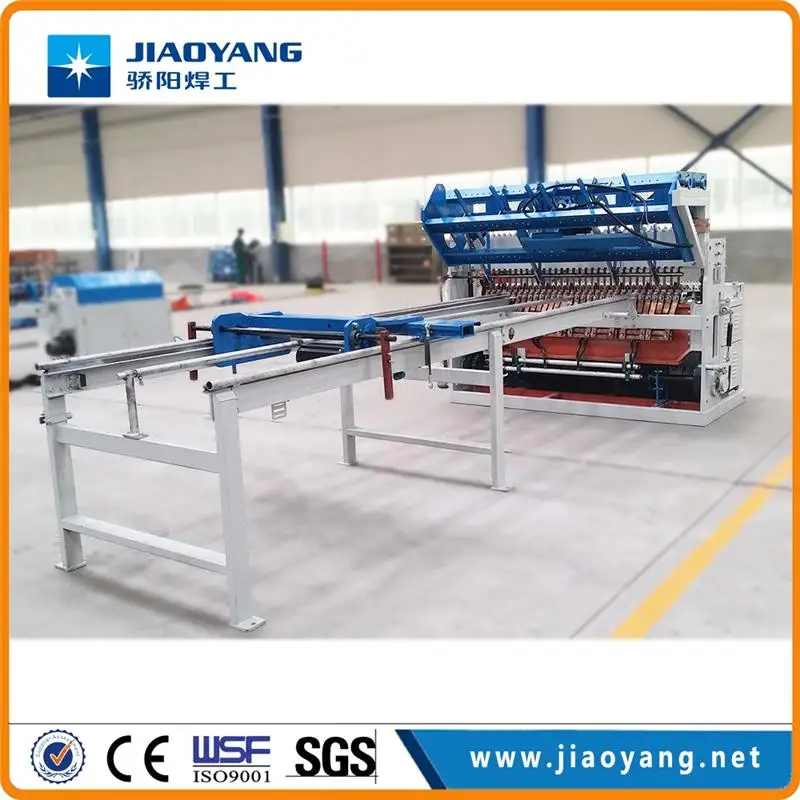

Automatic Wire Mesh Welding Panel Fence Machine/ Welded Panel Steel Wire Mesh WeldersMulti spot wire mesh welding machine

Automatic Wire Mesh Welding Panel Fence Machine/ Welded Panel Steel Wire Mesh Welders

  • Wire diameter: 5-12mm
  • Mesh hole size: 100*100-300*300mm
  • Mesh width: max.2.5m
  • Mesh length: max.12m
  • Welding speed: 45-65 times/min
  • Control system: Panasonnic PLC
  • Mesh pulling: Panasonic servo motor



Automatic Wire Mesh Welding Panel Fence Machine/ Welded Panel Steel Wire Mesh WeldersMain electric components:

Automatic Wire Mesh Welding Panel Fence Machine/ Welded Panel Steel Wire Mesh Welders

  • Panasonic (Japan) PLC program
  • Weinview (Taiwan) touch screen
  • Schneider (France) air switch
  • Schneider (France) low-voltage apparatus
  • ABB (Switzerland Sweden) switch
  • Tengen (China) isolation transformer
  • Delta (Taiwan) VFD
  • Meanwell (Taiwan) power supply
  • Panasonic (Japan) servo driver



Automatic Wire Mesh Welding Panel Fence Machine/ Welded Panel Steel Wire Mesh WeldersMain machine parts

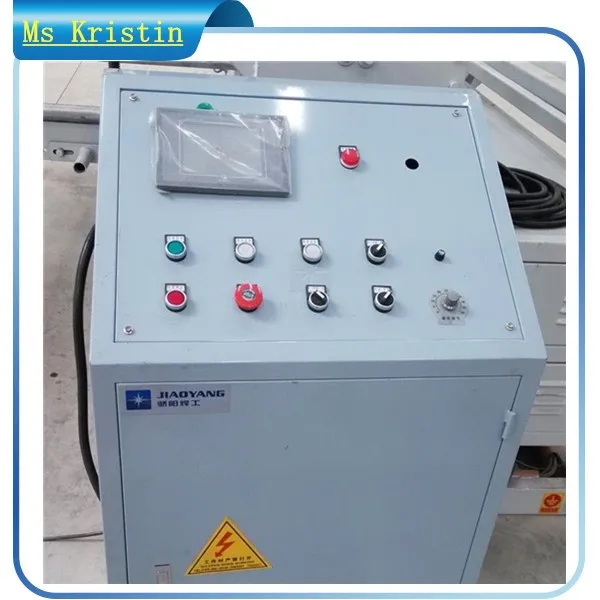

1.The control panel is more intelligent, Panasonic PLC program, very easy to operate.

2.The slot tunnels is made of cast iron material, suitable for different diameter.

3.The cross wires feeder is controlled by new type step motor and SMC (Japan) air cylinder.

4.Pure red copper (upper) and chromised bronze (lower), durable.

5.Clutch motor and helical gear reducer connect the principal axis directly, welding stable.

6.Casting water-cooling welding transformers, high efficiency. The welding degree is adjusted by PLC.

7.Panasonic (Japan) servo motor+planetary reducer and SMC (Japan) air cylinders for pulling mesh.

8.The cable drag chain is Igus brand, imported from Germany, not easily hang down.



Automatic Wire Mesh Welding Panel Fence Machine/ Welded Panel Steel Wire Mesh Welders



Finished wire mesh



Automatic Wire Mesh Welding Panel Fence Machine/ Welded Panel Steel Wire Mesh WeldersAutomatic Wire Mesh Welding Panel Fence Machine/ Welded Panel Steel Wire Mesh WeldersAutomatic Wire Mesh Welding Panel Fence Machine/ Welded Panel Steel Wire Mesh Welders
Automatic Wire Mesh Welding Panel Fence Machine/ Welded Panel Steel Wire Mesh WeldersAutomatic Wire Mesh Welding Panel Fence Machine/ Welded Panel Steel Wire Mesh WeldersAutomatic Wire Mesh Welding Panel Fence Machine/ Welded Panel Steel Wire Mesh Welders



After sales service

1. Guarantee time: one year since machine was at buyer's factory but within 18 months against B/L date.
2. Within guarantee time, if any components are broken under normal condition, we can change for free.
3. We can send our best technician to buyer’s factory for installation, debugging and training.
4. Complete installation instructions, circuit diagram, manual operations and machine layout.
5. Timely reply for your machine questions, 24 hours support service.



Engineers overseas



 Automatic Wire Mesh Welding Panel Fence Machine/ Welded Panel Steel Wire Mesh Welders

Why choose us?

1. Best machine quality

2. Trade assurance 600000+USD

3. Competitive price

4. Delivery on time

5. CE certificate



Automatic Wire Mesh Welding Panel Fence Machine/ Welded Panel Steel Wire Mesh Welders

Inquiry now. We will reply as soon as possible.
