Automatic steel wire mesh welding machine for construction

  • 1 - 2 Sets
    $15,000.00
  • >=3 Sets
    $11,000.00
Wire Diameter:
3-6mm
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Jiaoyang Wire Mesh Machine
After-sales Service Provided:
Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Warranty:
1 Year
Product Name:
Automatic steel wire mesh welding machine for construction
Wire Diameter:
3-6mm
Number of Electrodes:
24/32/40/48
Max. Mesh Width:
2500mm
Welding Speed:
60-80times/min
Control System:
PLC Control
Application:
construction wire mesh
Auxiliary machine:
Mesh cutting machine, Mesh rolling machine
Certification:
ISO9001, CE
Supply Ability
Supply Ability:
80 Set/Sets per Month Automatic steel wire mesh welding machine for construction
Packaging & Delivery
Packaging Details
Automatic steel wire mesh welding machine for construction will be packed with plastic bags, spare parts in carton box.
Special packing is available according to customers' requirements.
Port
Xingang Port
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 30 To be negotiated

Automatic steel wire mesh welding machine for construction

 More Information



Hebei Jiaoyang Wire Mesh Machine CO., LTD. China



Product description



Basic Information:

Product NameFully Automatic Welded Wire Mesh Machine 3-5mm/Wire Mesh Making Machine
Wire Diameter

3-5mm

Mesh Hole25-200mm
Mesh Width1.2-2.5m
Welding Speed60t/min
Shipping TermXingang Port
Payment TermT/T, L/C







Technical Parameters:

Item

GWCD-1200D

GWCD-1600D

GWCD-2100D

GWCD-2500D

Number of Electrodes

24

32

40

48

Max. Mesh Width

1200mm

1600mm

2100mm

2500mm

Wire Diameter

3-5mm

3-5mm

3-5mm

3-5mm

Mesh Length

3-12m

3-12m

3-12m

3-12m

Cross Wire Space

50-200mm

50-200mm

50-200mm

50-200mm

Line Wire Space

50-200mm

50-200mm

50-200mm

50-200mm

Electric Capacity

≥160KVA

≥160KVA

≥160KVA≥160KVA

Welding Speed

60t/min

60t/min

60t/min

60t/min

Control System

PLC Control

PLC Control

PLC Control

PLC Control

Special specification is available according to your requirements.



Product Advantage:

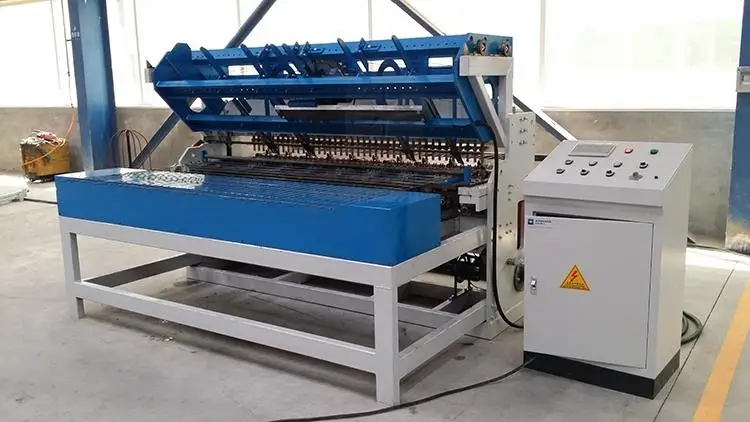

1. The product model:Construction mesh welding machine
2. The control system:The control panel (button)
3. Power system:Motor
4. Characteristic:
Cross wires are pre-straightening and cutting wires, line wires are coil wire. The machine can weld continuous wire mesh sheets and wire mesh rolls, main functional structures: line wire straightening and locator device, cross wire store hopper, mechanical hauling wire mesh device, mesh size locator device. It is compact in structure, easily to operate and with fully functions. The machine mainly to make construction welded wire mesh.











Auxiliary Machinery:

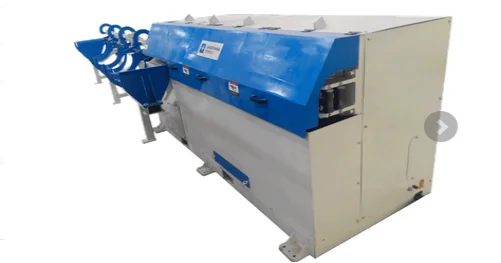

Wire Straightening and Cutting Machine

      Wire Diameter: 3-6mm

     Cutting Length: 0.8-6m

     Cutting Speed: 90-110m/min

     Motor Capacity: 9KW



                                                                                                                                                                                                                                                                                                                  Contact Us>>>



Purchase guide



Below information is required for quick quotation:

 1. Wire diameter :   From         mm to         mm.

 2. Line wire space : From        mm to             mm.

     Cross wire space : From        mm to             mm.

 3. Mesh width: 1200mm ~1500mm~2100mm~2500mm~3000mm ( customized)

 4. Industrial voltage : 380V  50HZ ( Customized)

 5. Do you want to weld wire mesh panel or mesh in coil ?

 6. Is the auxiliary equipment also require ?

                                                                                                                                                        Contact Us>>>



Packaging



Fully Automatic Welded Wire Mesh Machine 3-5mm/Wire Mesh Making Machine:

The machine will be packed with plastic bags, spare parts in carton box.
Special packing is available according to customers' requirements.



Our Service:

Fully Automatic Welded Wire Mesh Machine 3-5mm/Wire Mesh Making Machine



Pre-Sales Service:

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

* Online visit

After-Sales Service:

* Training how to install,operate and maintain the machine.

* Engineers available to service machinery overseas.

* One year gurantee for the whole machine.

* Operation manual is available.

Sincerely look forward to cooperate with you ! For more details about wire mesh welding machine, welcome to contact with us in any time ! We will fully committed to provide the best quality products and services.

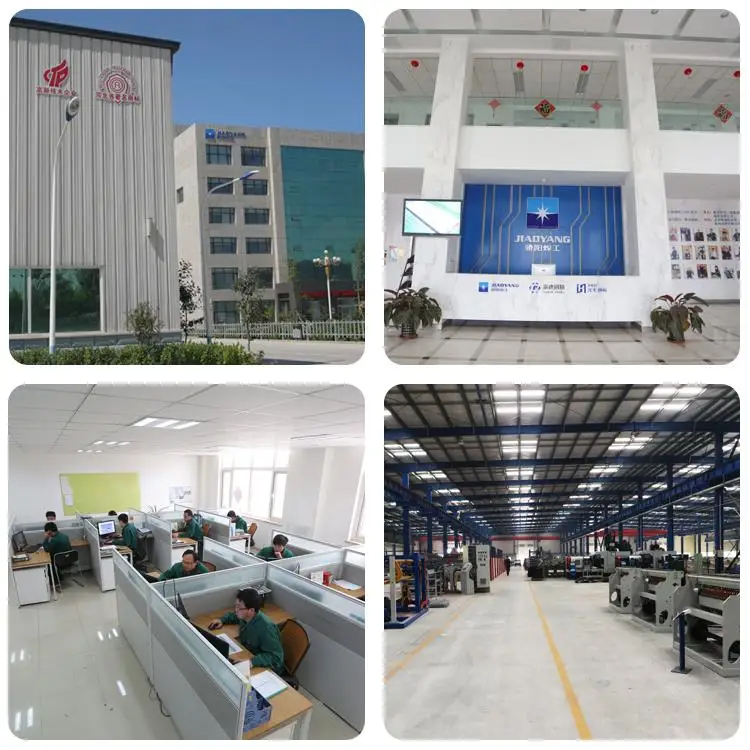

Our company
  1. Fully Automatic Welded Wire Mesh Machine 3-5mm/Wire Mesh Making Machine
  2. Employees: 243
  3. Engineers and technicians: 34
  4. Processing equipment: 105 sets
  5. Plant area: 133,000 square meters
  6. Office area: 3,700 square meters
  7. National patents: 63
  8. Assets: USB 20,000,000
  9. Annual equipment export amount: 360 sets
  10. Annual equipment output: 800 sets
  11. Foreign markets: Asia, Middle East, America, Africa




Certifications:

We have gotten the ISO9001, CE, SGS certifications for Fully Automatic Welded Wire Mesh Machine 3-5mm/Wire Mesh Making Machine.

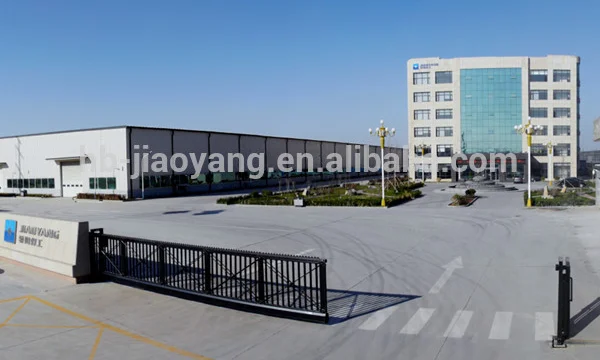

Company Profile:

Hebei Jiaoyang Wire Mesh Machine Co., Ltd. (here-in-after referred to as JIAOYANG), located in the well-known hometown of wire mesh-Anping County, Hebei Province, established in 1988. After nearly 30 years of tempering,  industry involves steel welded wire mesh machineries and steel welded mesh processing and distribution. The company implements industrialization, informationization and standardization under the strategic plan of “based on the mesh and serving the society”. The modern management system has become a welding mesh machine integrating R&D, design, manufacture, sales and service. The company is a technology research and development enterprise specializing in the research of wire mesh and steel electric soldering technology equipment.
